VICTRON OFF GRID SYSTEMS
VICTRON OFF GRID SYSTEMS
from 27.00
Complete Off-Grid System
Fully installed
European Engineering
Top quality 2v or 6v batteries
Government rebate available
Call us to calculate performance for your region
CALL Direct 1300 883 847
SYSTEM OPTION:
Quantity:
All Systems include
315 W Tier 1 solar panels (Risen Energy )
Engineer Certified Tilt Roof Mounting system
Victron Smart Solar MPPT Charge Controller
Victron Multi-plus or Quattro Inverter Charger

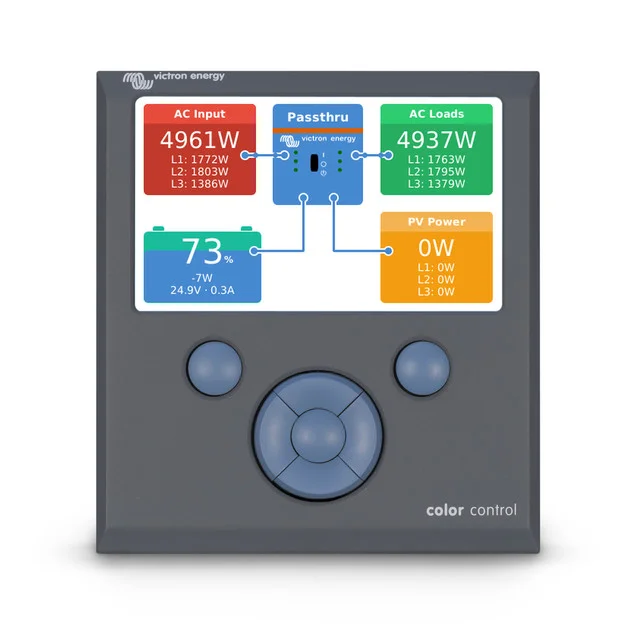

Victron CCGX Color Control Panel

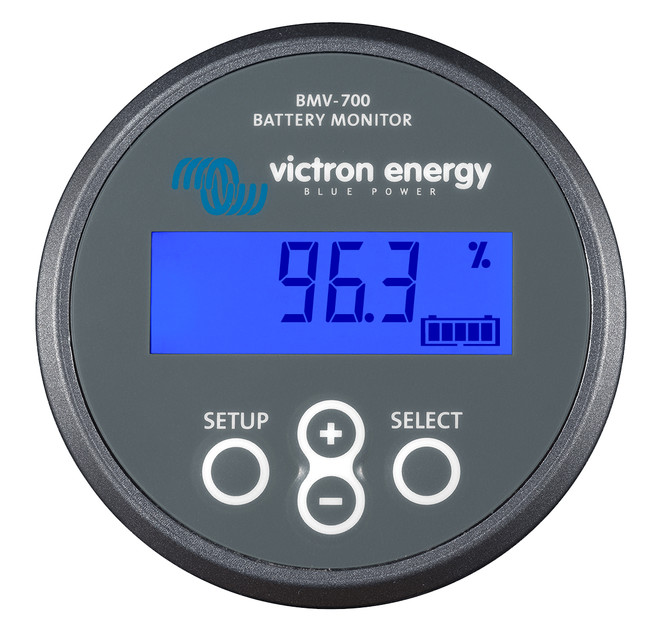

Victron Battery Monitor
Battery Bank - 10 year Design life
Battery Rack / Enclosure
Battery Temperature Sensors
All enclosures, signage isolation & fusing
AC disribution point, kWh Power Usage Meter
Site specific design documentation
User Manuals and schematics
Onsite training and instruction
Full installation by C.E.C Certified installation team
PLEASE CONTACT US ON 1300 883 847
FOR SOLAR DESIGN SPECIFIC TO YOUR LOCATION
BATTERY INFORMATION
Downloads
VICTRON INFORMATION
Downloads
6 SOLAR PANELS
RANGE OF SIZES
1.89 kw system - The Granny flat
6 x 315w Longi Tier 1 solar panels
Victron Blue Solar 150V / 45A MPPT Solar Charger
Victron Multi-plus 48V / 3000VA Inverter Charger (2,500W continuous, 6,000W surge)
48v 240 Ah Maxon Gel / Agm Hybrid Battery Bank
Total 11 kwh stored power
System designed with 3 days Battery Autonomy
Recommended daily power consumption 2.5 kWh
10 year battery life under design conditons
KIT price -$10,350
Fully installed price -$10,750
2.83 kw - Small house - 1 person
9 x 315w Longi Tier 1 solar panels
Victron EASYSOLAR 3KVA
48v 365 Ah Maxon Gel AgM Hybrid Battery Bank
Total 17.5 kwh stored power
System designed with 3 days Battery Autonomy
Recommended daily power consumption 3.8 kWh
10 year battery life under design conditons
KIT price -$12,850
Fully installed price -$13,450
9 SOLAR PANELS
3.78 kw - Small house - 2 people
12 x 315w Longi Tier 1 solar panels
Victron EASYSOLAR 3KVA
48v 465 ah Maxon Gel / Agm Hybrid Battery Bank
Total 22 kwh stored power
System designed with 3 days Battery Autonomy
Recommended daily power use 5.1 kWh
Australian made and engineered system
10 year battery life @ Designed 20% D.O.D
KIT price -$14,880
Fully Installed price -$15,600
12 SOLAR PANELS
5.67 kw - Medium home - 3 people
18 x 315 w Longi Mono Perc Tier 1 solar panels
Victron Blue Solar 150V / 100 A MPPT Solar Charger
Victron Multi-plus 48V / 5000VA Inverter Charger (4,000W continuous, 10,000W surge)

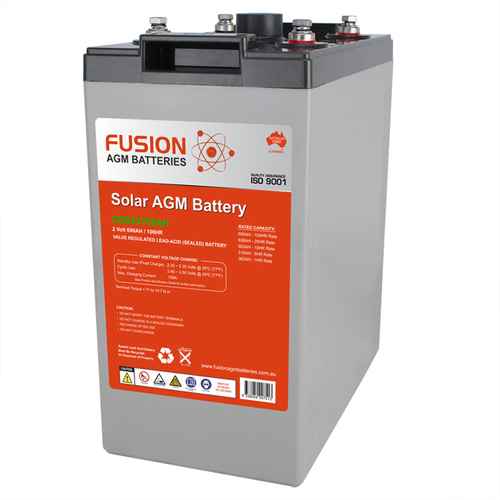

48v 690 Ah SOLAR AGM Battery Bank (FUSION OR POWERSONIC)
Total 33 kwh stored power
System designed with 3 days Battery Autonomy
Recommended daily power consumption 7.7 kWh
10 year battery life under design conditons
KIT price -$26,230
Fully installed price -$27,250
18 SOLAR PANELS
7.56 kw - Large home - 4 people
18 x 315 w Longi Mono Perc Tier 1 solar panels
2 x Victron Blue Solar 150V / 60 A MPPT Solar Charger
Victron Multi-plus 48V / 8000VA Inverter Charger (6,5000W continuous, 16,000W surge)
48v 920 Ah SOLAR AGM Battery Bank (FUSION OR POWERSONIC)
Total 44 kwh stored power
System designed with 3 days Battery Autonomy
Recommended daily power consumption 11 kWh
10 year battery life under design conditons
KIT price -$35,250
Fully installed price -$36,950

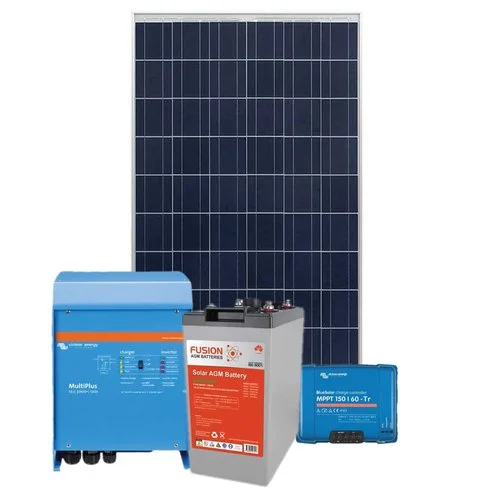

24 SOLAR PANELS
11.34 kW - Large home - 6 people
36 x 315w Longi Mono PercTier 1 solar panels
2 x Victron Smart Solar 150V / 100A MPPT Charge Controller

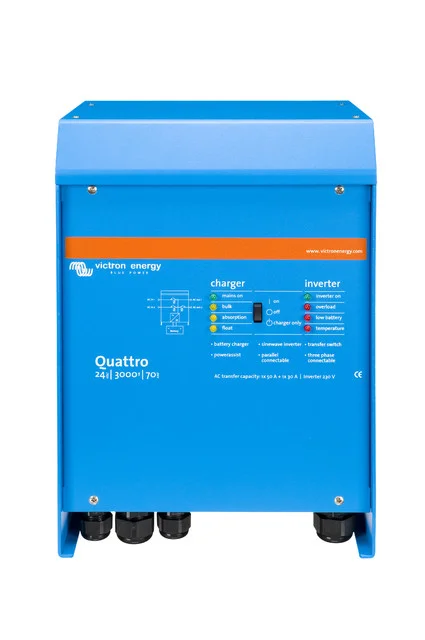

Victron Quattro 48V / 10,000VA Inverter Charger (8,000W continuous, 20,000W surge)
48v 1380 Ah Deep Cylce Solar AGM Battery Bank
Total 66 kwh stored power
System designed with 3 days Battery Autonomy
Recommended daily power consumption 15 kWh
10 year battery life
Fully installed price -$47,950
Fully installed price -$49,950
36 SOLAR PANELS
