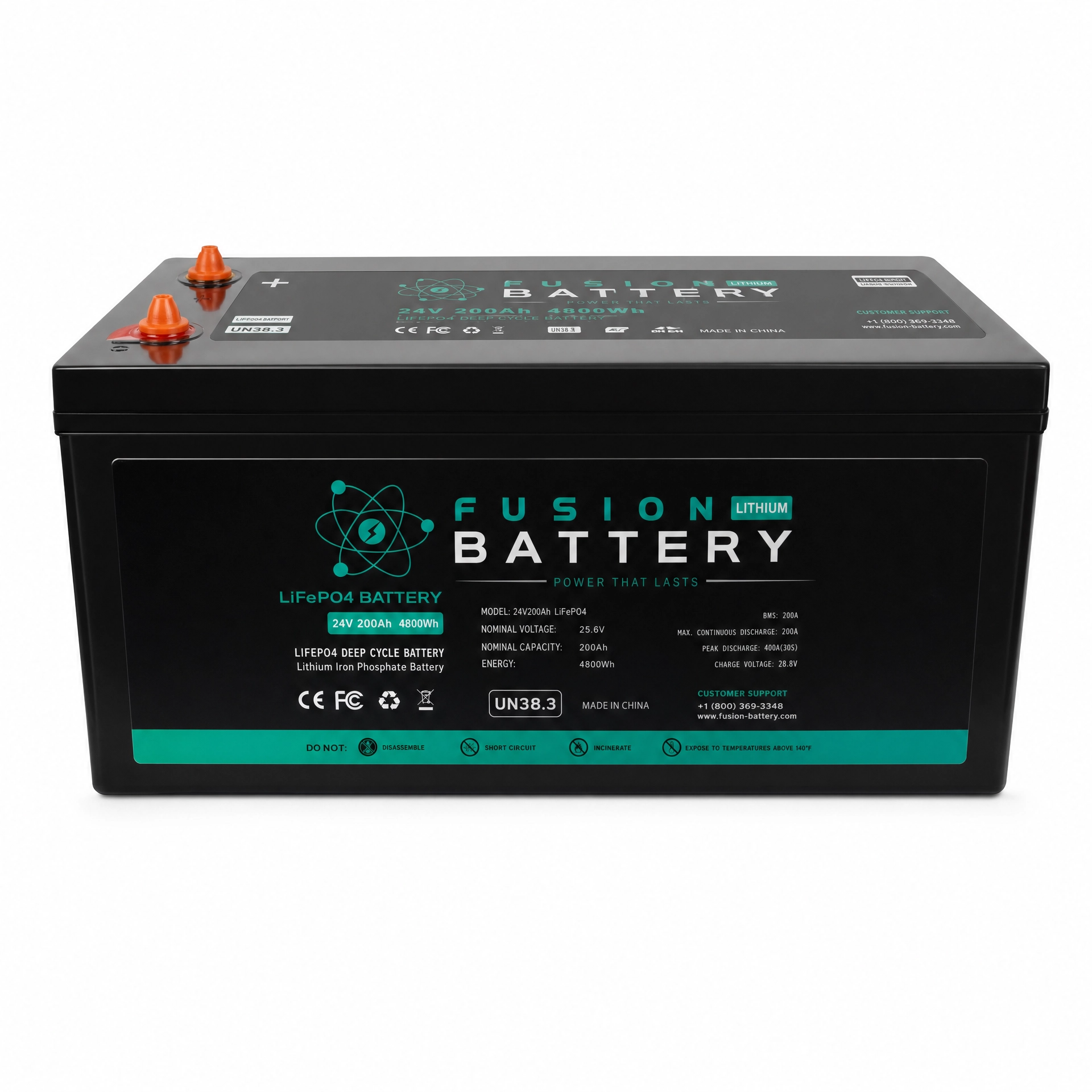

The Fusion Lithium V-LFP-24-200EV is a high-performance 25.6V 200Ah Lithium Iron Phosphate ($\text{LiFePO}_4$) battery designed for heavy-duty energy storage. It features an integrated BMS with smart Bluetooth 4.0 monitoring, allowing you to track live voltage, capacity, health, and cycle life via a smartphone app. Lightweight, fast-charging, and maintenance-free, it delivers over 2,000 cycles at 100% DOD.

BATTERY SPECIFICATIONS

• Model: V-LFP-24-200EV

• Chemistry: Lithium Iron Phosphate (LiFePO4)

• Nominal Voltage/Capacity: 25.6V / 200Ah

• Total Energy: 5120 Wh

• Cycle Life: >2000 cycles @ 100% DOD

• Continuous Discharge Current: 150A

• Peak Discharge Current: 450A (5 seconds)

• Dimensions: 522 × 268 × 224 mm (20.55 × 10.55 × 8.82 in)

• Weight: 36.5 kg (80.47 lbs)

Key Features

• Smart Bluetooth App: Wirelessly monitor State of Charge (SOC), temperature, and safety protections.

• Built-in Safety: Integrated Battery Management System (BMS) with high/low temperature and short circuit cut-offs.

• Certifications: UL1642 (Cell), CE, IEC62133, CB, UN38.3.

• Top Applications: Solar storage, marine, electric vehicles, AGVs, robotics, and UPS backup power.
